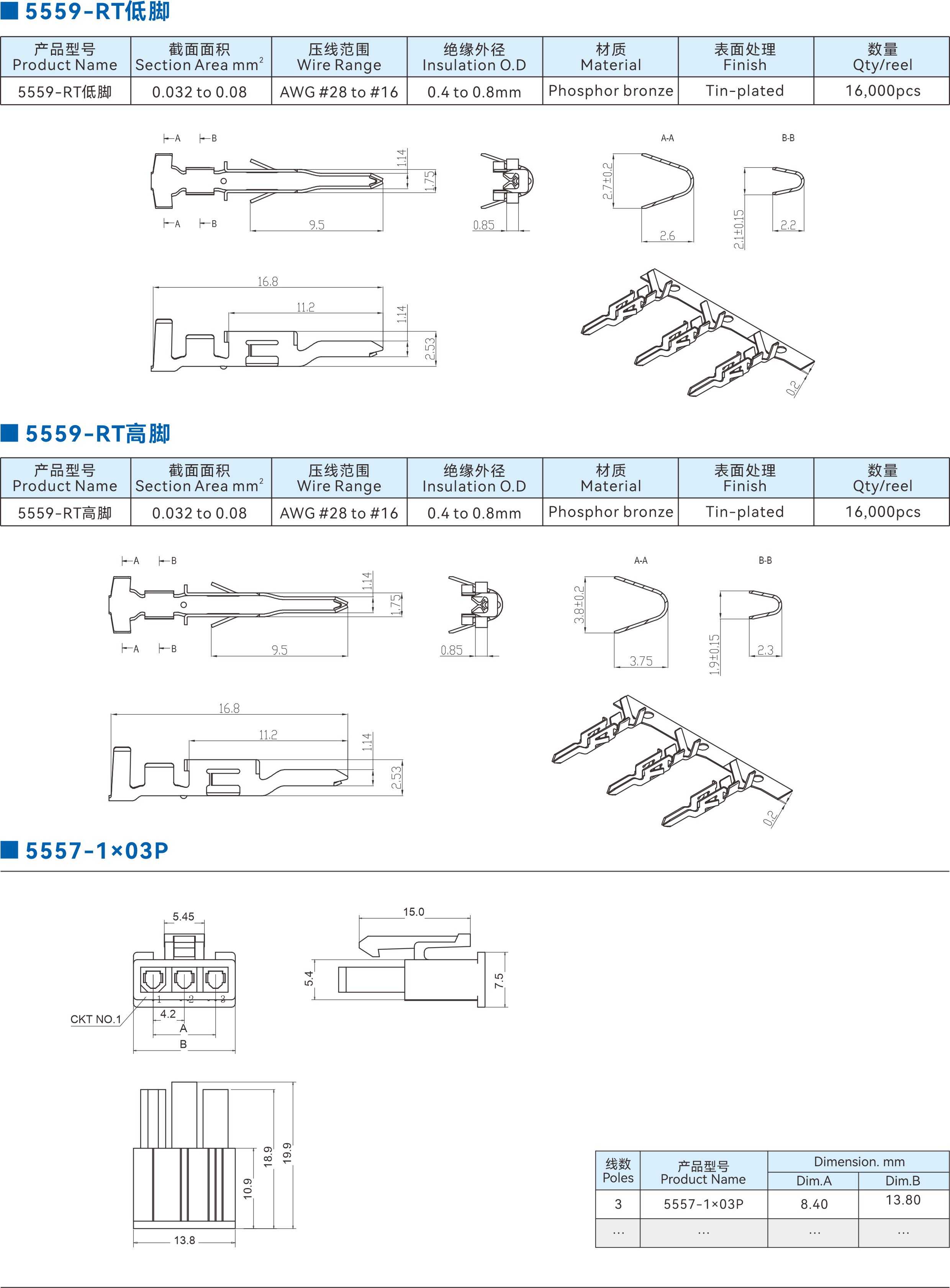

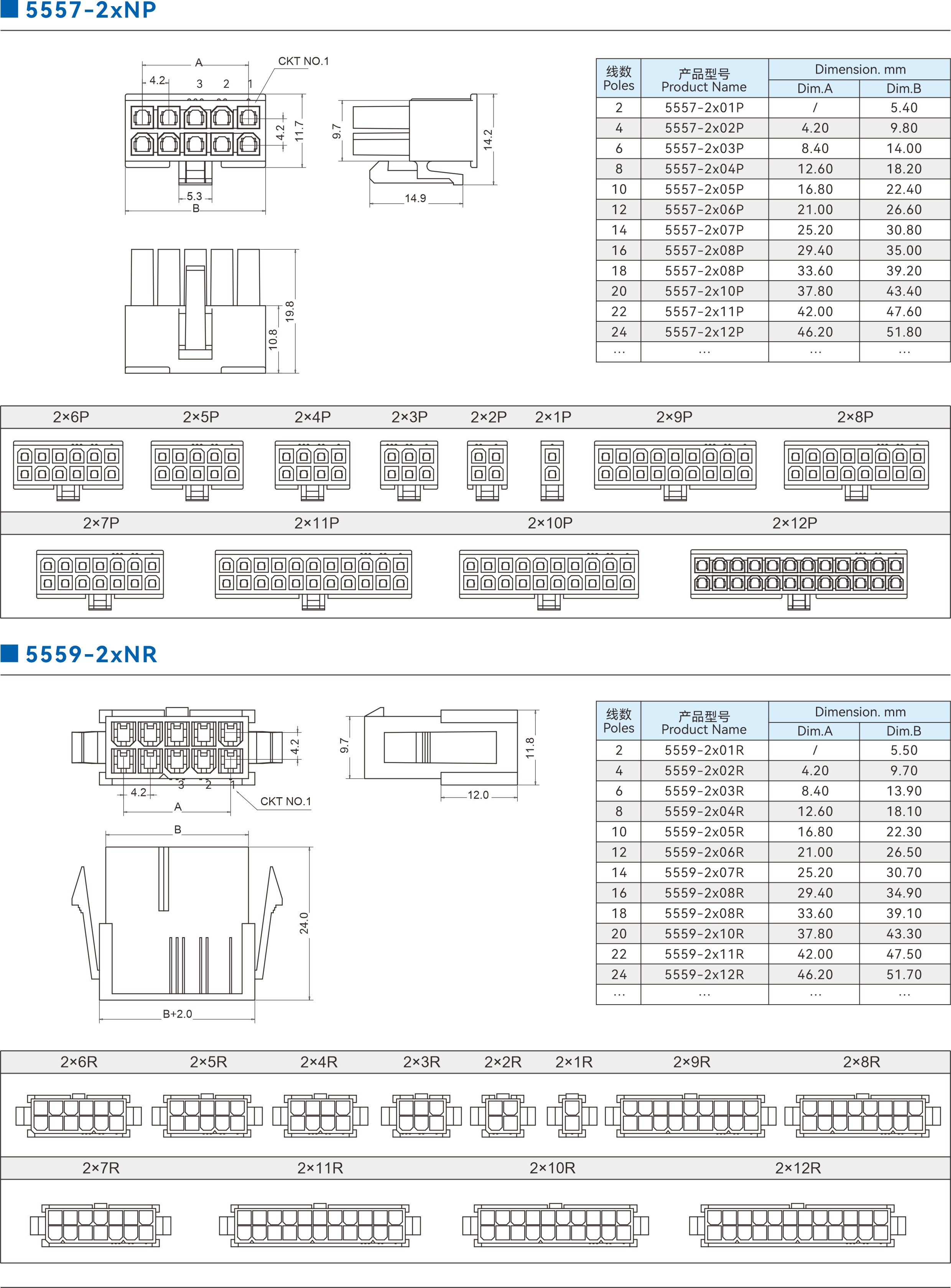

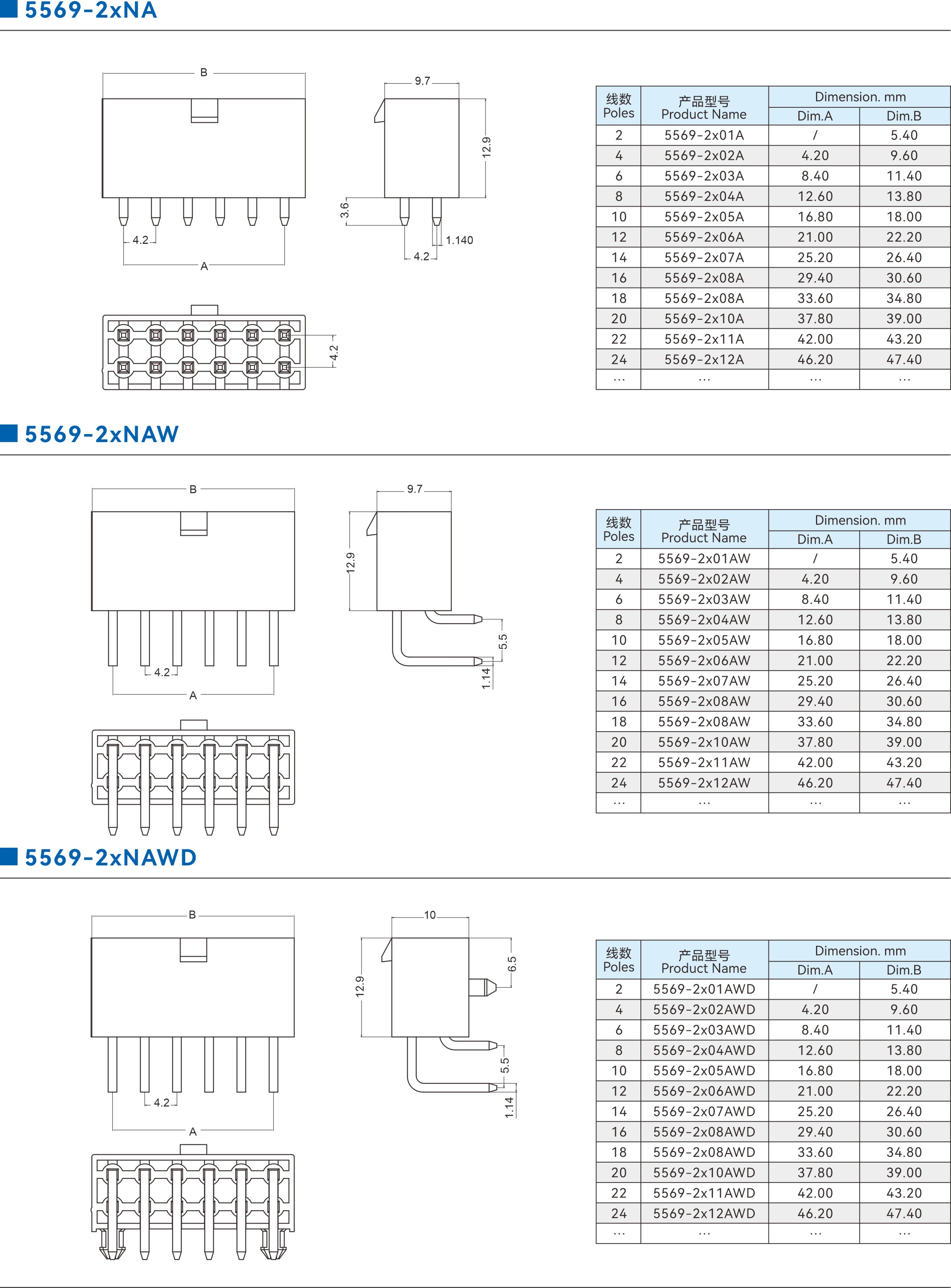

A4201&A4202(5557/5559/5569)
线数 Poles | 2-24P | |
适用线规 Applicable wires | AWG28#-22# | |
温度范围 Temperature range | -25℃ ~ 85℃ | |
额定电压 Voltage rating | 300V.AC/DC | |
额定电流 Current rating | 9.0A AC.DC | |
接触电阻 Contact resistance | ≤15.0mΩ | |
绝缘电阻 Insulation resistance | ≥1000mΩ | |
耐压 | 1500V AC/1Min | |
材料 Material | 胶壳 Housing | PA66 UL94V-2(0) |

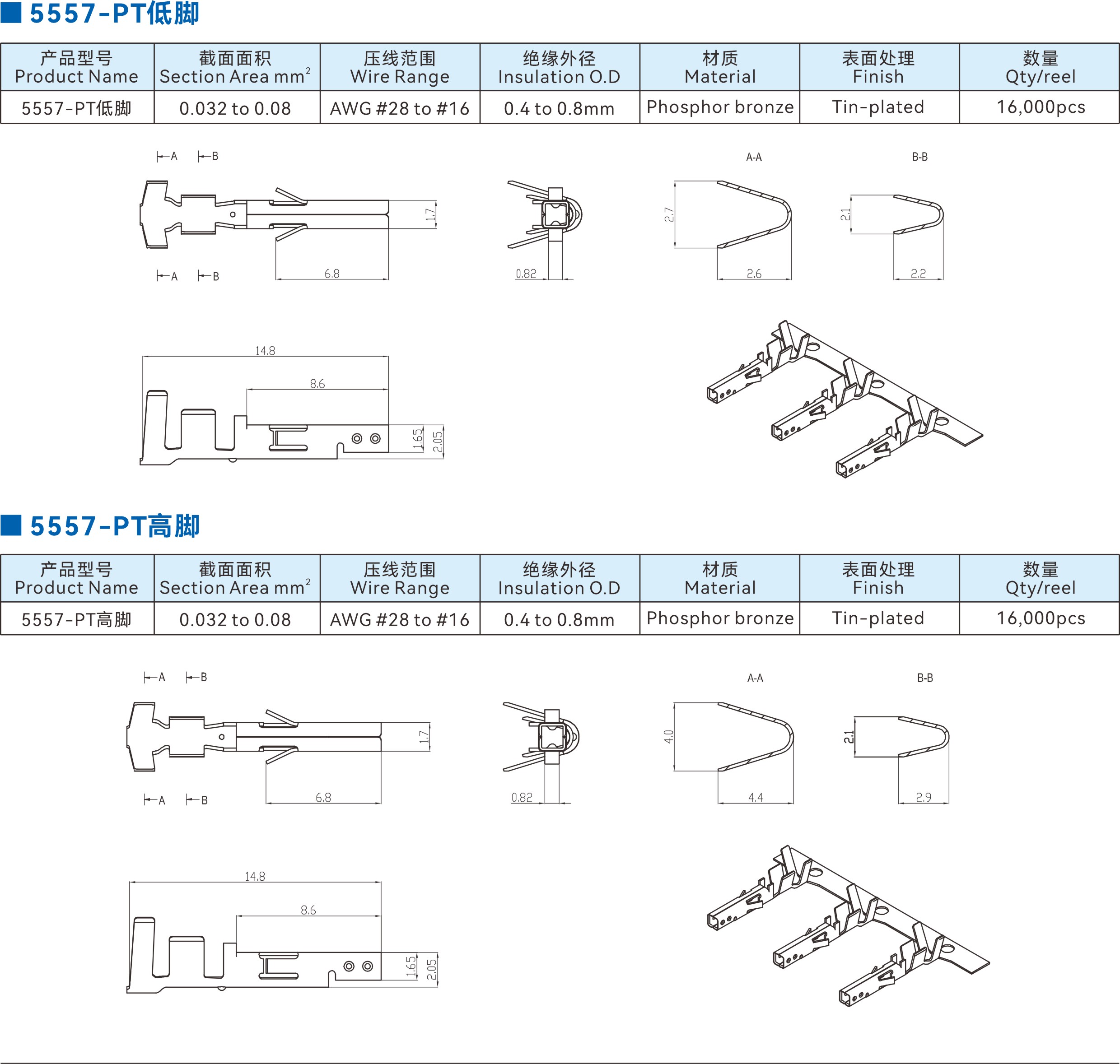

端子 Terminal | 磷青铜/镀锡 Phos.bronze Tin/plated | |
