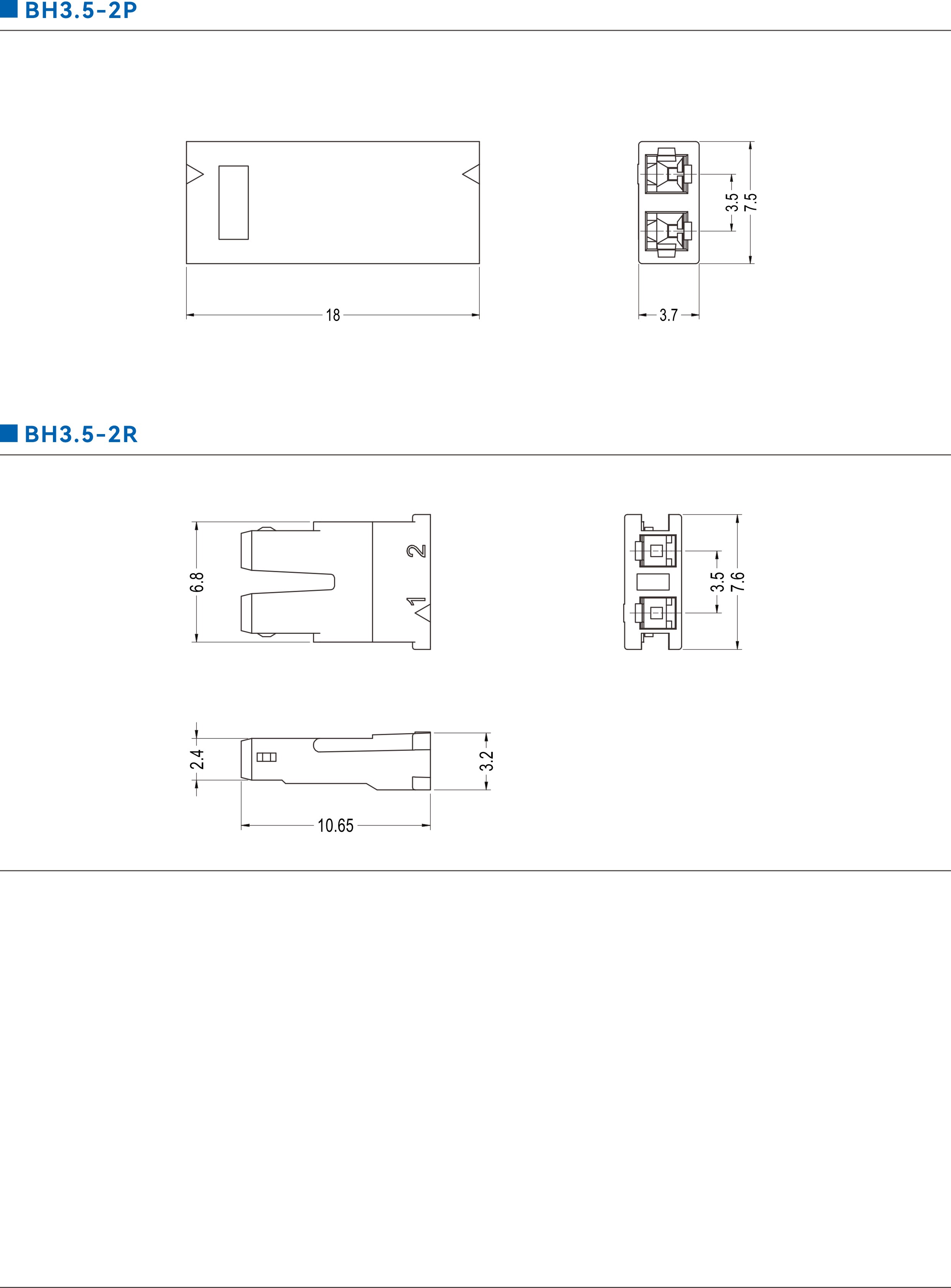

C3501&C3502(BH3.5)
线数 Poles | 2P | |
适用线规 Applicable wires | AWG28#-24# | |
温度范围 Temperature range | -25℃ ~ 85℃ | |
额定电压 Voltage rating | 1400V.AC/DC | |
额定电流 Current rating | 1.0A AC.DC | |
接触电阻 Contact resistance | ≤10.0mΩ | |
绝缘电阻 Insulation resistance | ≥1000mΩ | |
耐压 | 3800V AC/1Min | |
材料 Material | 胶壳 Housing | PA66 UL94V-2(0) |

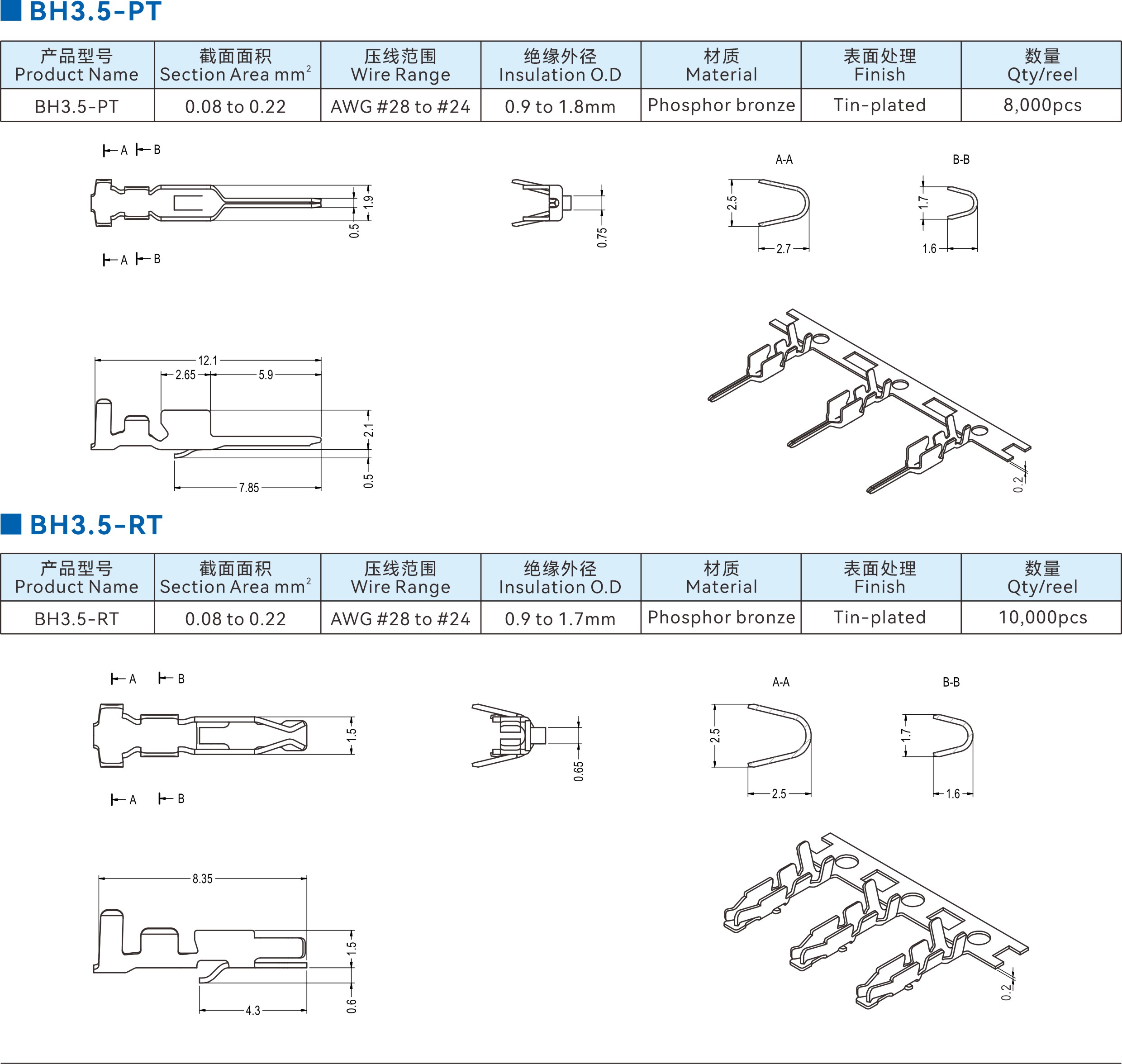

端子 Terminal | 磷青铜/镀锡 Phos.bronze Tin/plated | |
