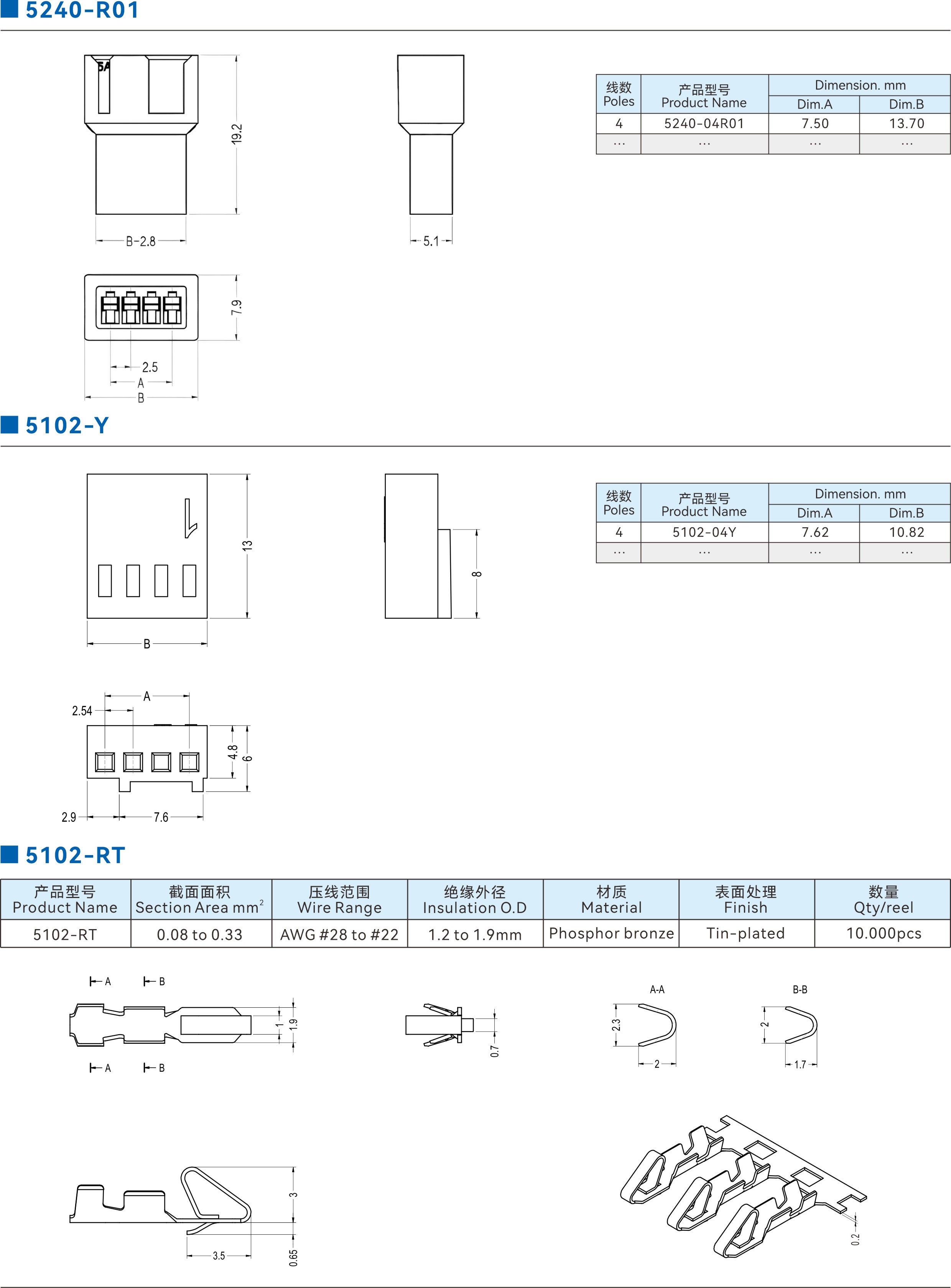

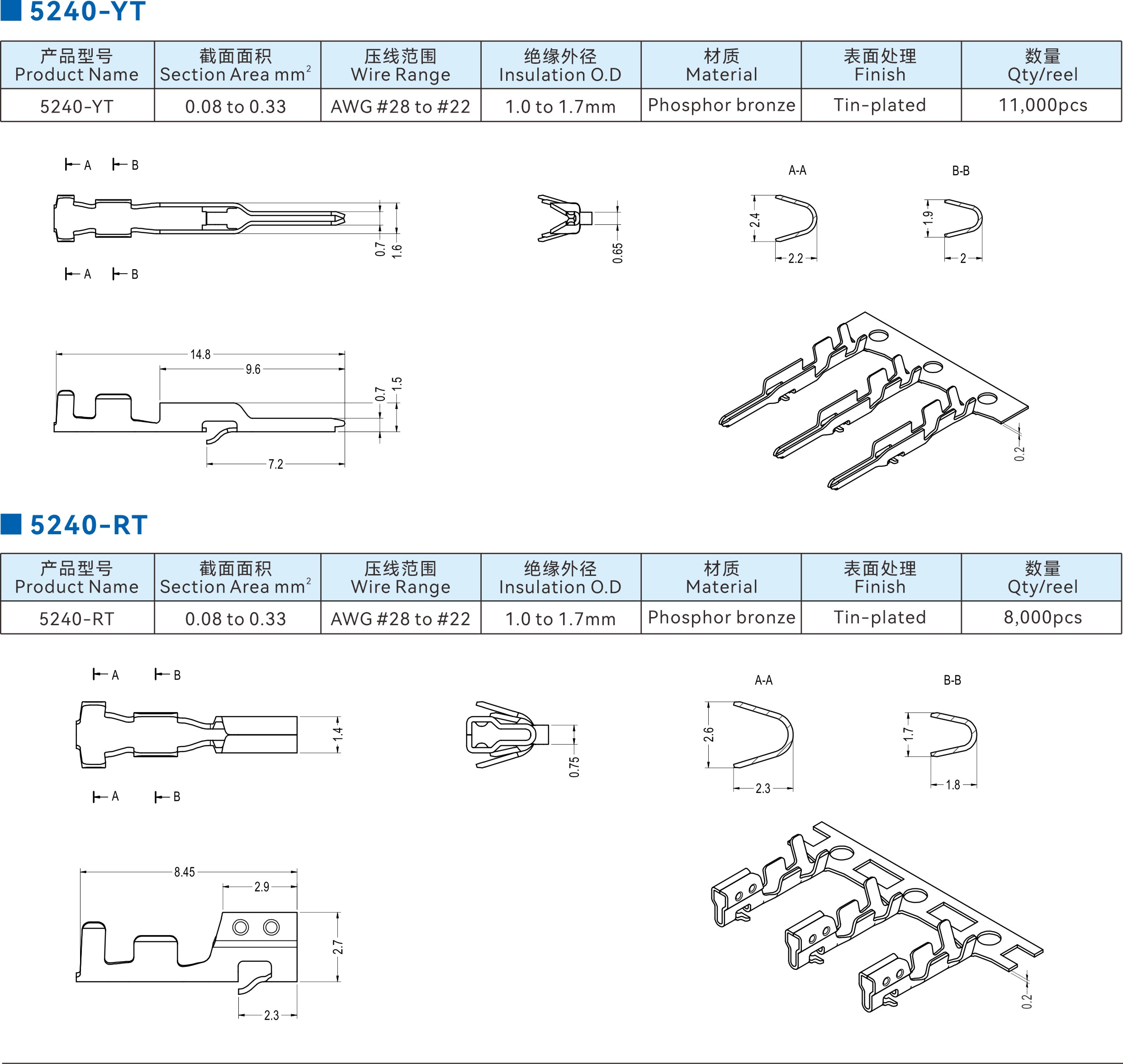

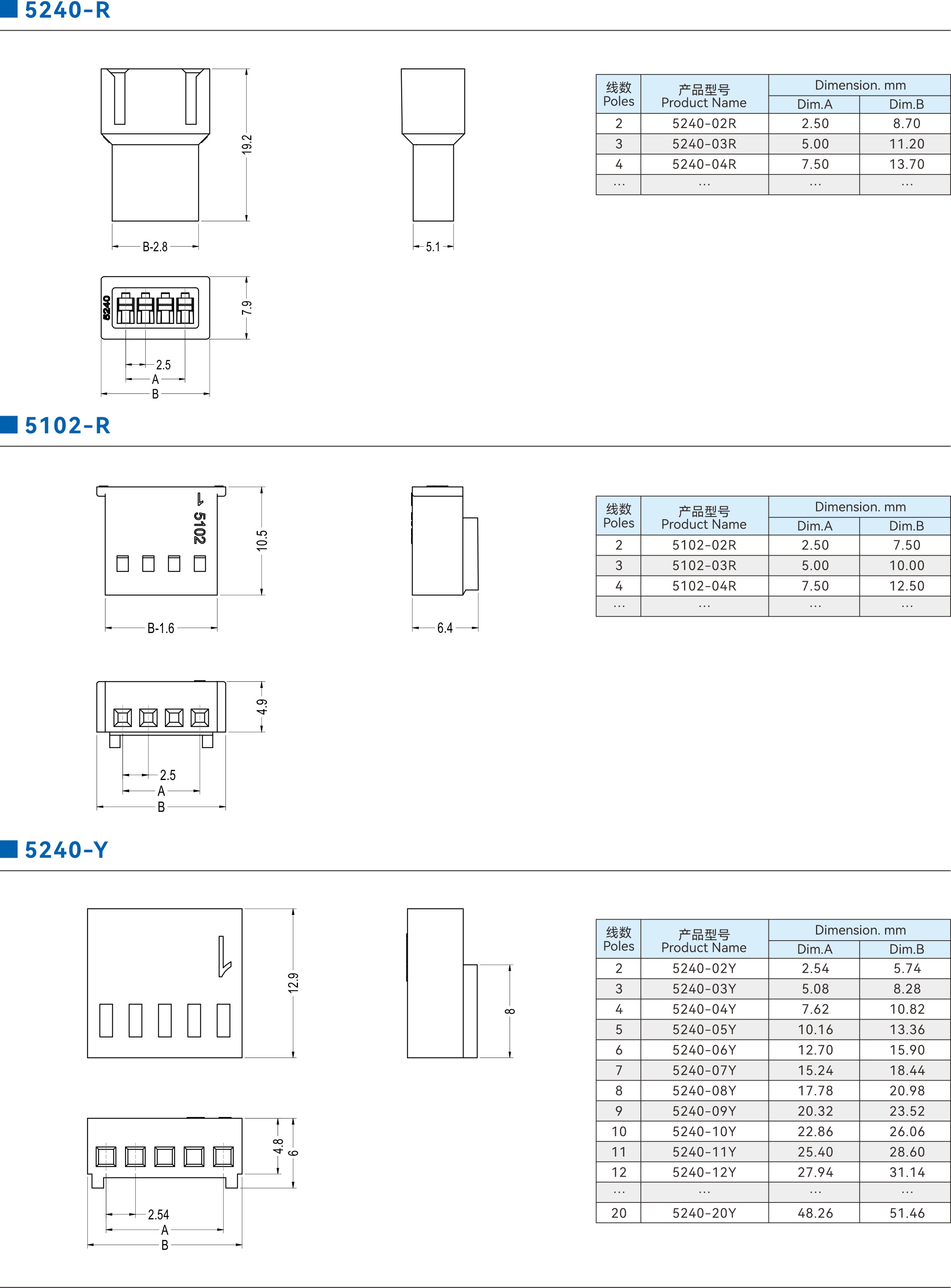

C2505&C2506(5240/5102)
线数 Poles | 2-4P | |
适用线规 Applicable wires | AWG28#-20# | |
温度范围 Temperature range | -25℃ ~ 85℃ | |
额定电压 Voltage rating | 250V.AC/DC | |
额定电流 Current rating | 2.0A AC.DC | |
接触电阻 Contact resistance | ≤20.0mΩ | |
绝缘电阻 Insulation resistance | ≥1000mΩ | |
耐压 | 1000V AC/1Min | |
材料 Material | 胶壳 Housing | PA66 UL94V-2(0) |
针 Wafer | 黄铜/镀锡 Brass Tin | |
端子 Terminal | 磷青铜/镀锡 Phos.bronze Tin/plated | |
